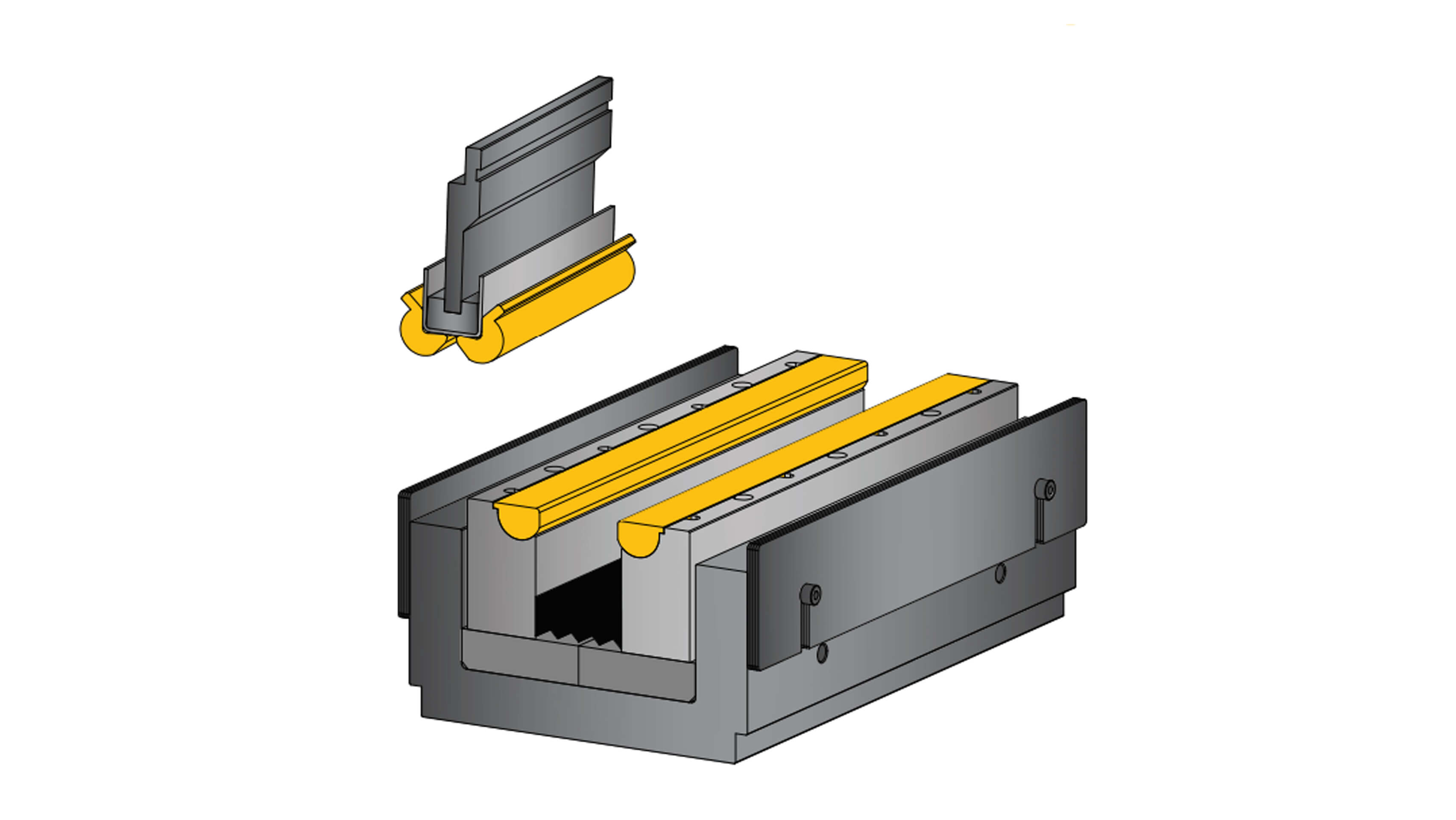

Adaptive Rocker Die - 2
Max. Tonnage capacity 200T/m. Outside channel Range 45~120- ARD2
adaptive-rocker-die
Material Option :

Chrome Nickel Grade tool steelToughened 38±2HRc
and Working Area Laser
Hardened 55/56HRc.
Rocker Material :
Chrome Vanadium Steel
Vacuum Hardened 58±2HRc.

Material Option :

Tonnage Capacity 200T/m
Minimum bend angle 58º
Max. Material Thk. M.S. 16mm - S.S. 12mm
Maximum Outside Radius R15/R60
Minimum Possible Flange Length 20.2/76.8
