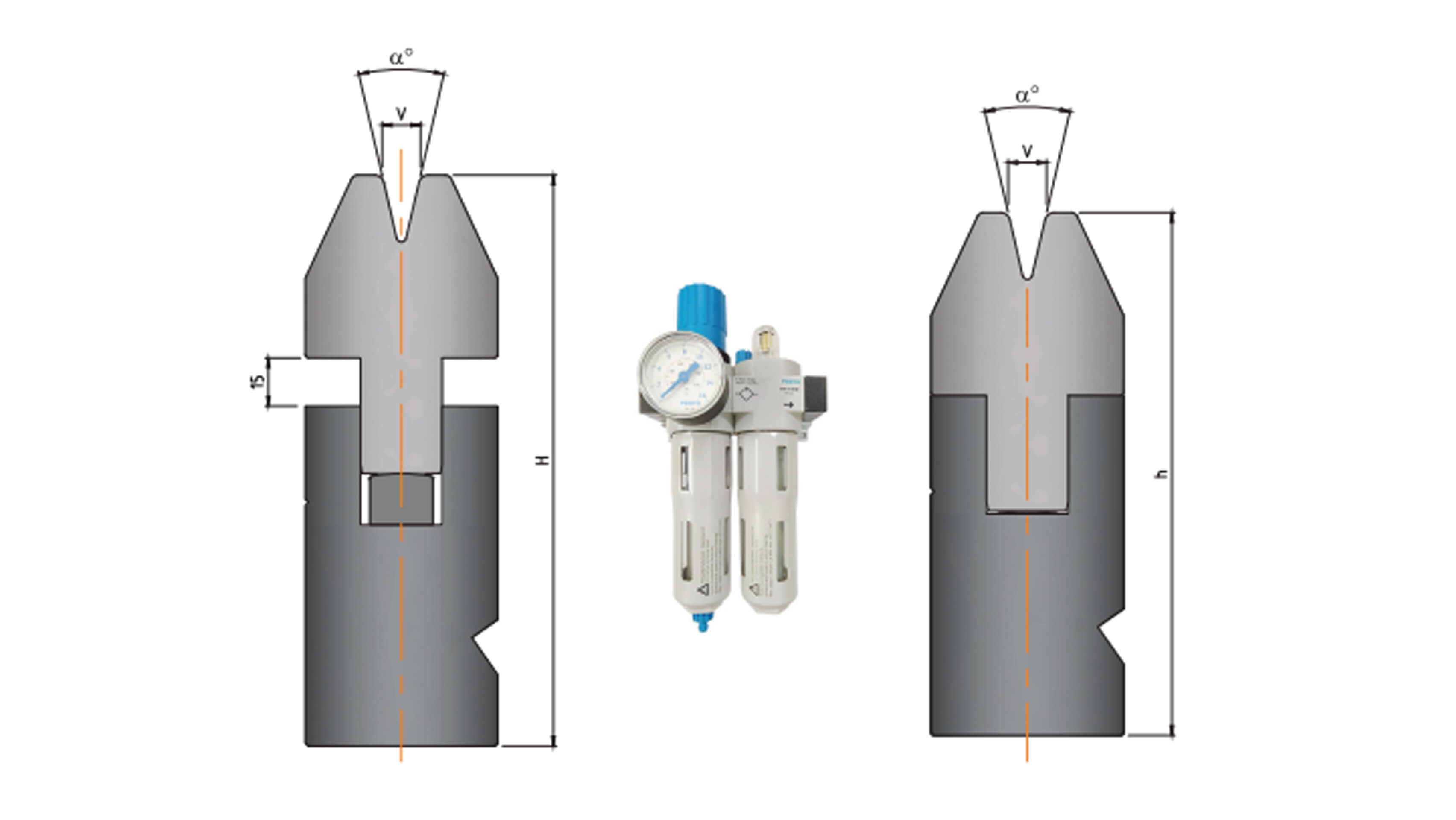

Pneumatic Hemming Die
| Pneumatic Hemming Die | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Vee Opening (V) |
Angle (α) |
Max Sheet Thk.(S) | Open Height (H) |
Closed Height (h) |
Hemming (Ton/m) |
Hemming (Ton/m) |
|||
| MS | SS | MS | SS | MS | SS | ||||
| 6 | 35 | 1 | 0.8 | 148 | 133 | 15 | 20 | 40 | 50 |
| 8 | 30 | 1.6 | 1.2 | 148 | 133 | 28 | 26 | 65 | 80 |
| 10 | 30 | 2 | 1.6 | 173 | 158 | 30 | 38 | 80 | 100 |
| 12 | 26 | 2.5 | 2 | 178 | 148 | 55 | 50 | 90 | 130 |
Material Option :
M-01 Performance grade.
Cr'Mn'Mo 900-1020 N/mm2
(Alloy steel)
Quenched and tempered 30±2 HRc.
Tip Induction Hardened 52±2HRc
Material Option :
M-02 Economy grade.
C45 : 570-680 N/mm²
(Plain Carbon Steel)
Tip Induction Hardened 52±2HRc.
