Customized Rocker Die
customized-rocker-die

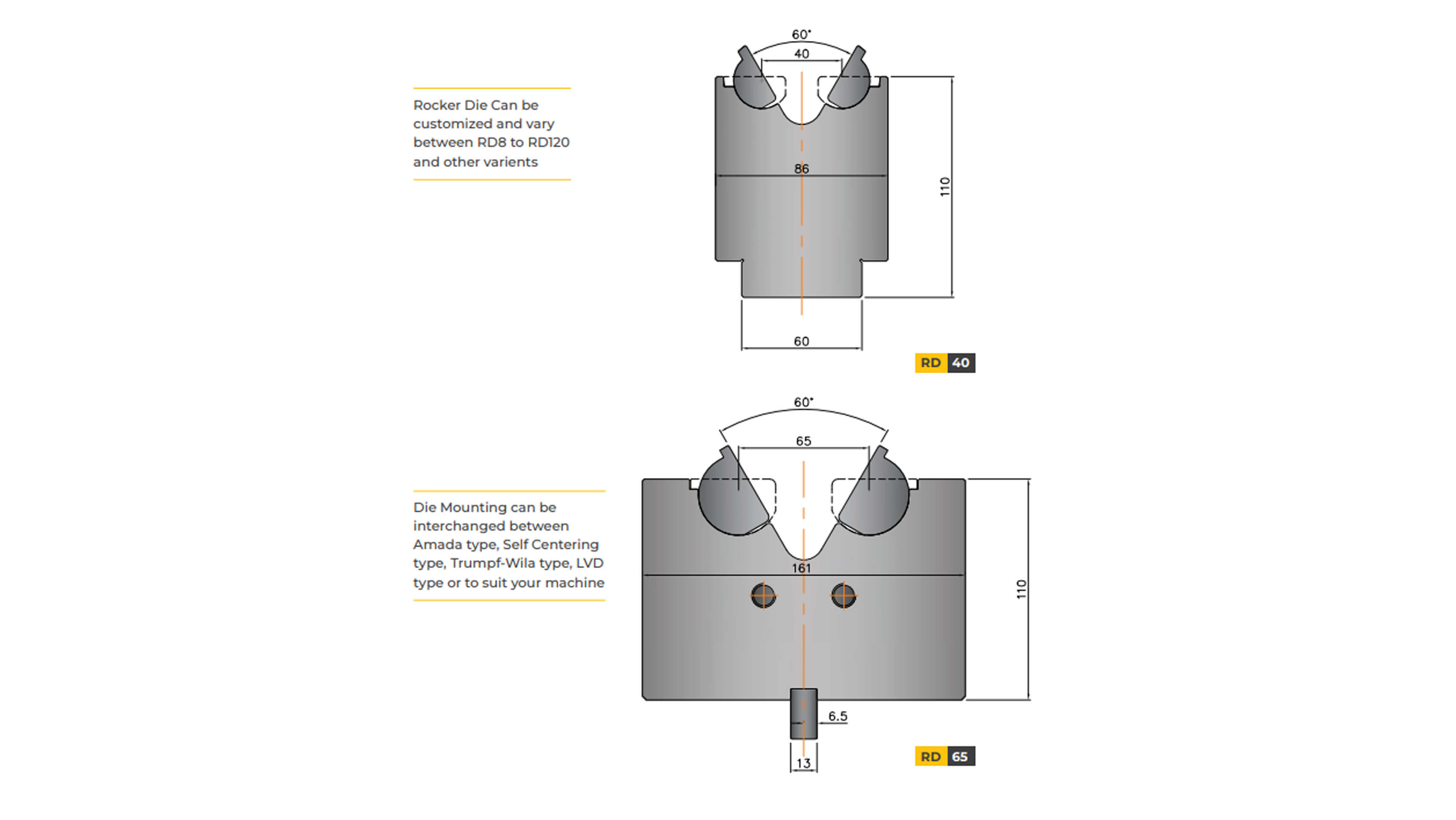

RD 40

Rocker Die Can be customized and vary between RD8 to RD120 and other varients

customized-rocker-die

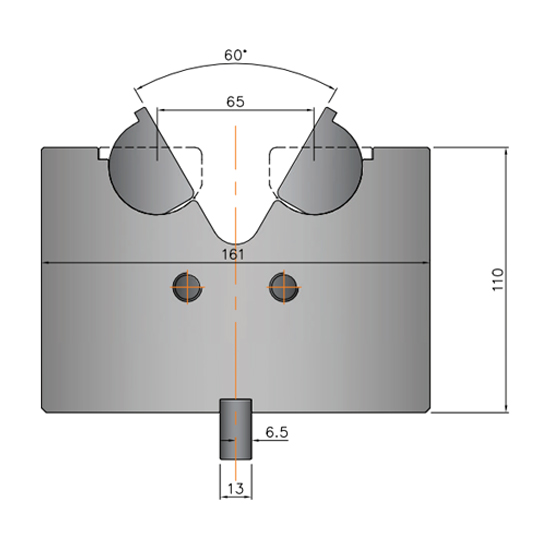

RD 65

Die Mounting can be interchanged between Amada type, Self Centering type, Trumpf-Wila type, LVD type or to suit your machine

  • Tonnage Capacity 150T/m
  • Minimum bend angle 60º
  • Max. Material Thk. M.S. 5mm - S.S. 4mm
  • Maximum Outside Radius R10
  • Minimum Possible Flange Length 13.5mm
Material Option :

M-01 Performance grade.
Cr'Mn'Mo 900-1020 N/mm2
(Alloy steel)
Quenched and tempered 30±2 HRc.
Tip Induction Hardened 52±2HRc

material-option
Material Option :

M-02 Economy grade.
C45 : 570-680 N/mm²
(Plain Carbon Steel)
Tip Induction Hardened 52±2HRc.

material-option
Material Option :

M-08 Tough Hardened and Groundened.
42Cr'Mo4
Quenched & Tempered 30±2 HRc

material-option
