Rocker Die
Design :
- 4 models of Rocker Dies for Upto 4mm thickness.
- Options available to suit all machine bases.
- Adaptive Rocker Die for heavy thicknesses.
- Single-stroke channel forming achievable by swapping rockers of Adaptive Rocker Bending Die.
- Adaptive Joggle Tool enables variable offset bending with minimum changeover.
- Rocker Wiping Tool enables extended sheet bending without lifting sheet.
Advantages :

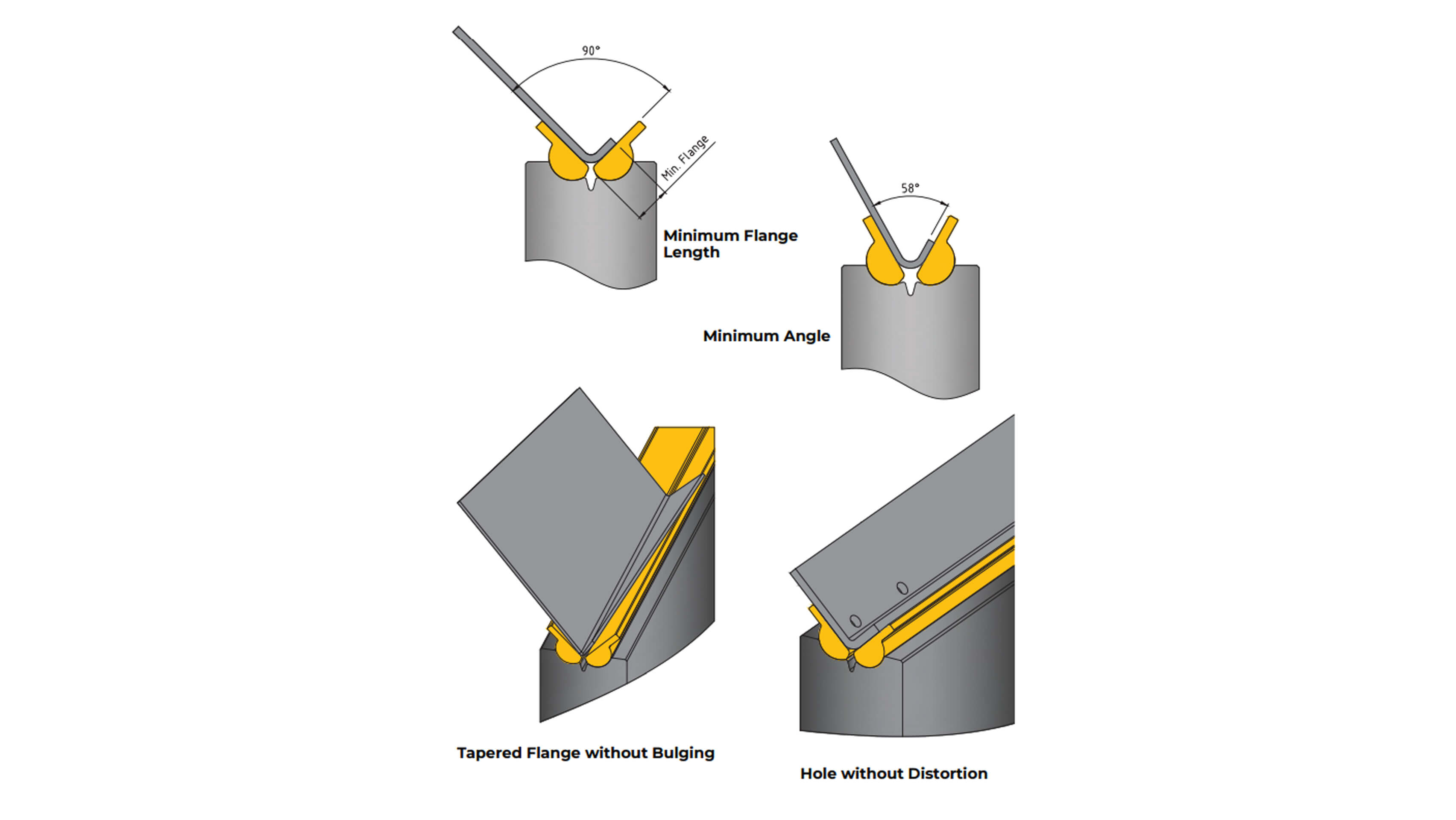

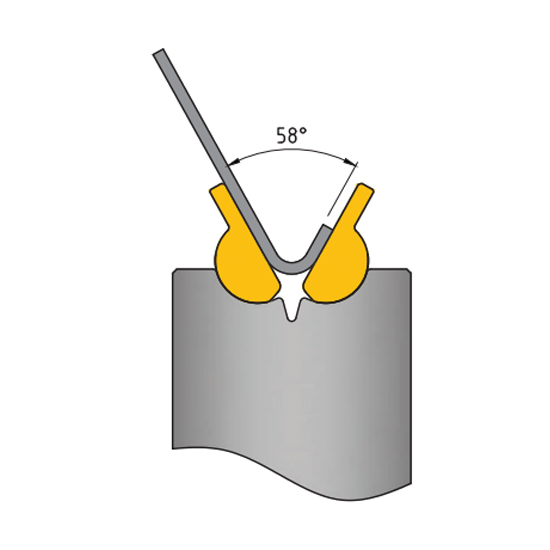

- Achieving minimal flange bending.

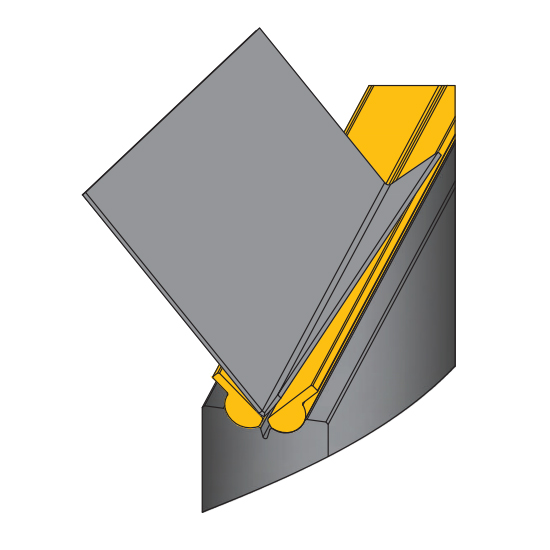

- Bend tapered flanges without bulging
- Bend aesthetic materials mark-free
- Dodging deformation, bend perforated, chequered plates.
- Form short, tapered flanges with finesse.

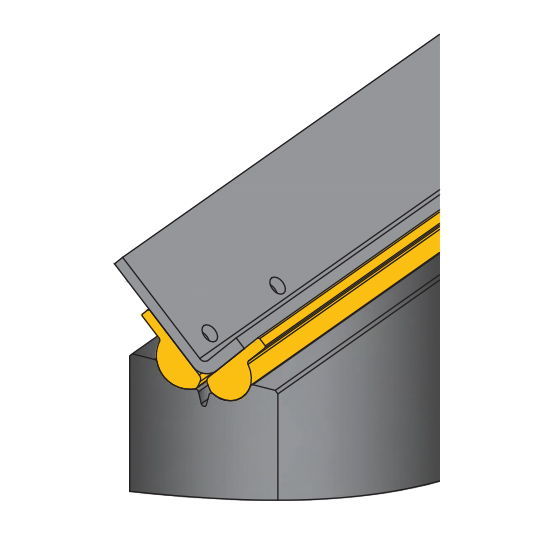

- Bend adjacent to holes, slots without distortion
- Reduce tool changeovers to boost efficiency.
Moulded For Long Lasting :
- Rockers engineered with chrome vanadium steel, max. robustness vacuum hardened 58 HRc.
- Rocker die base manufactured using Chrome Nickel Grade tool steel- Toughened 38±2HRc and Working Area Laser Hardened 55/56Hrc.

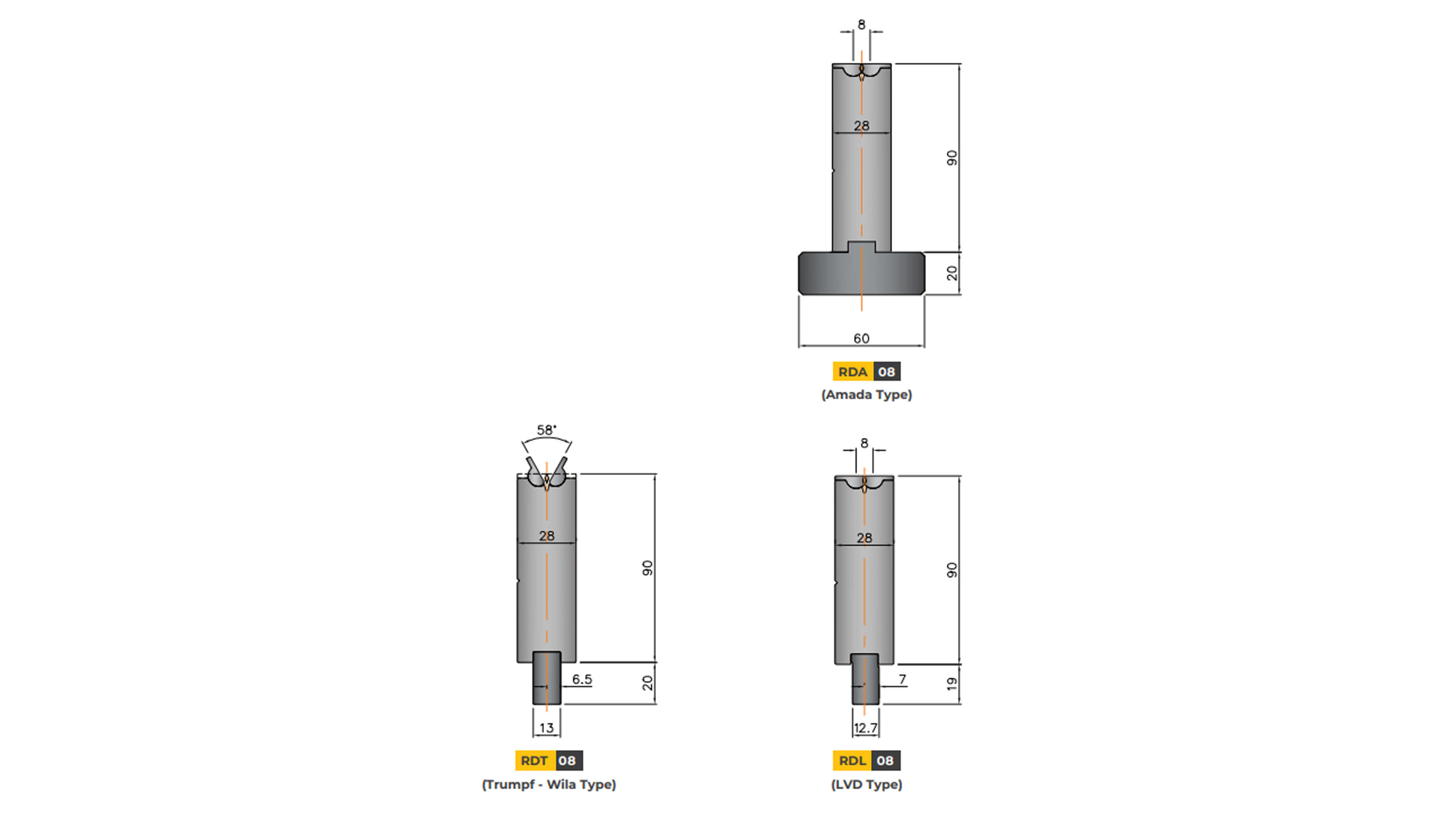

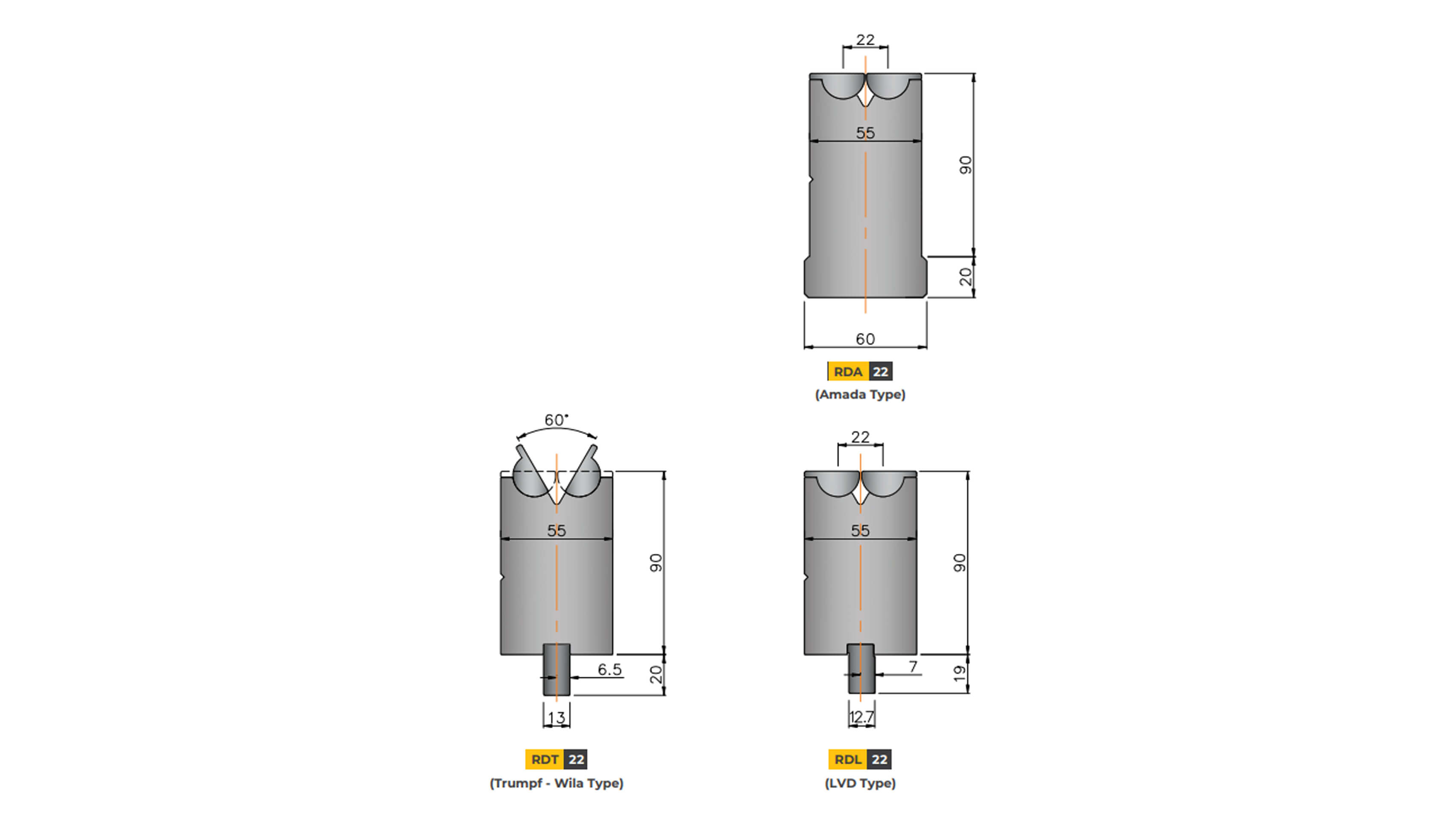

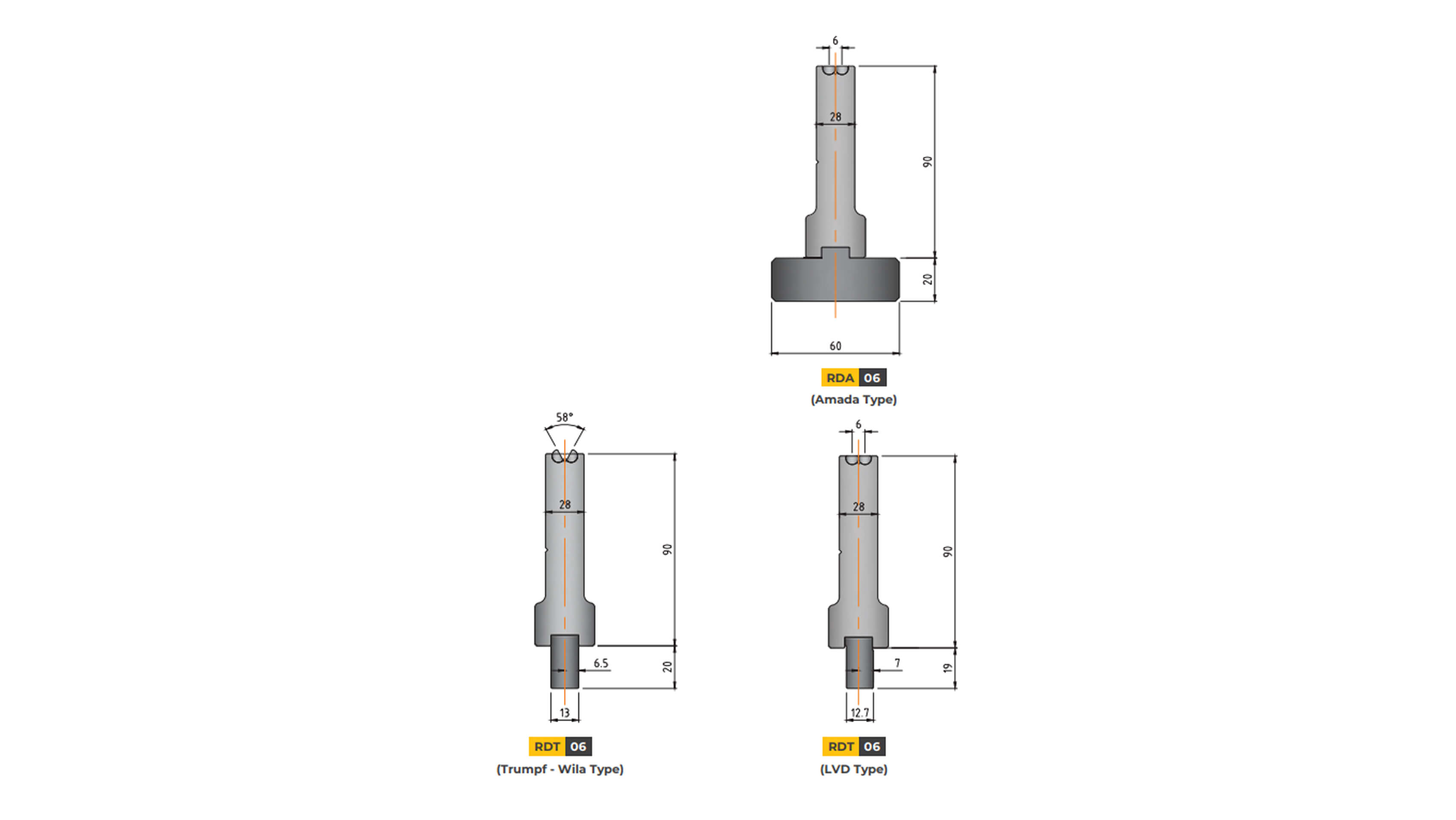

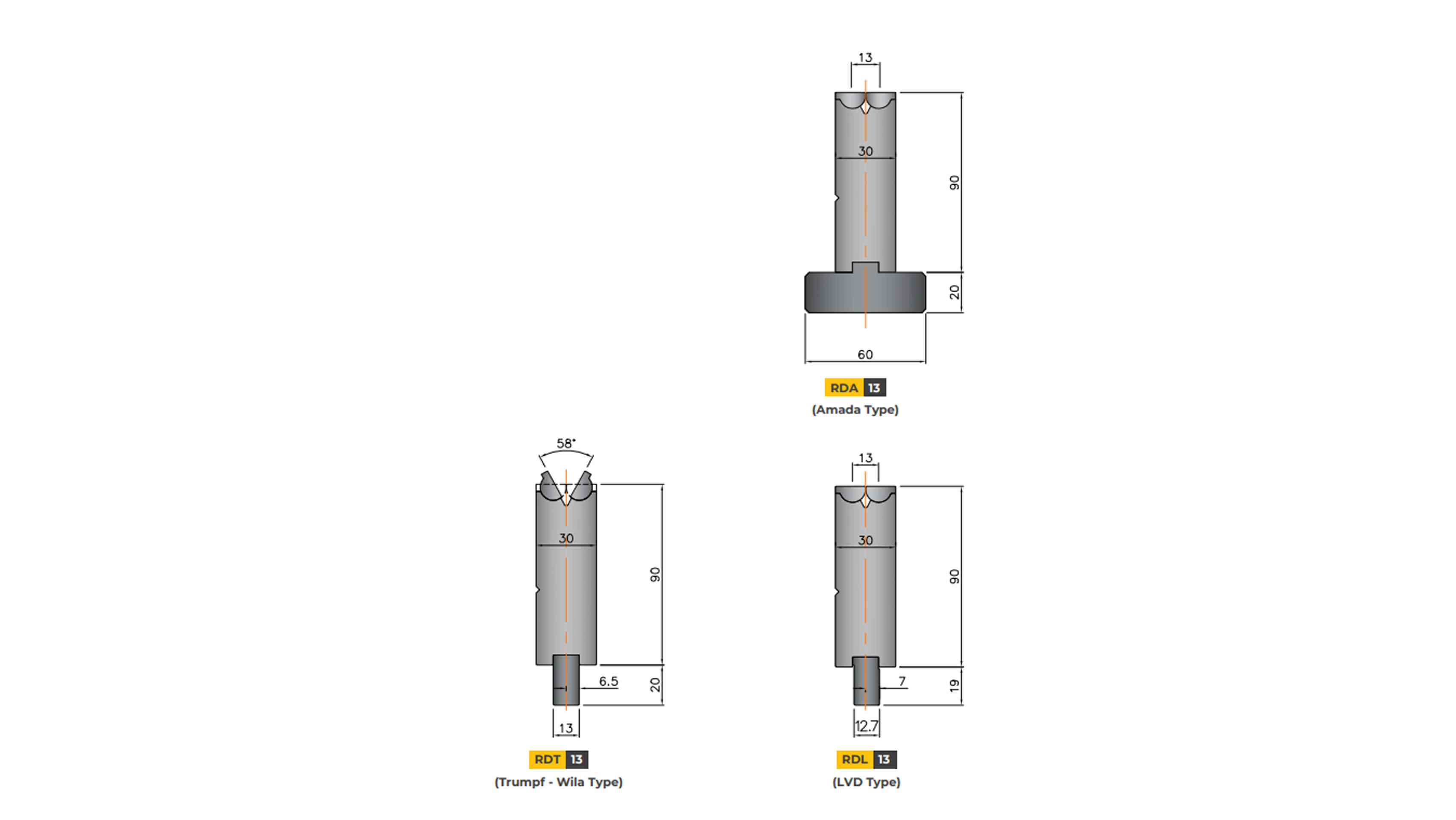

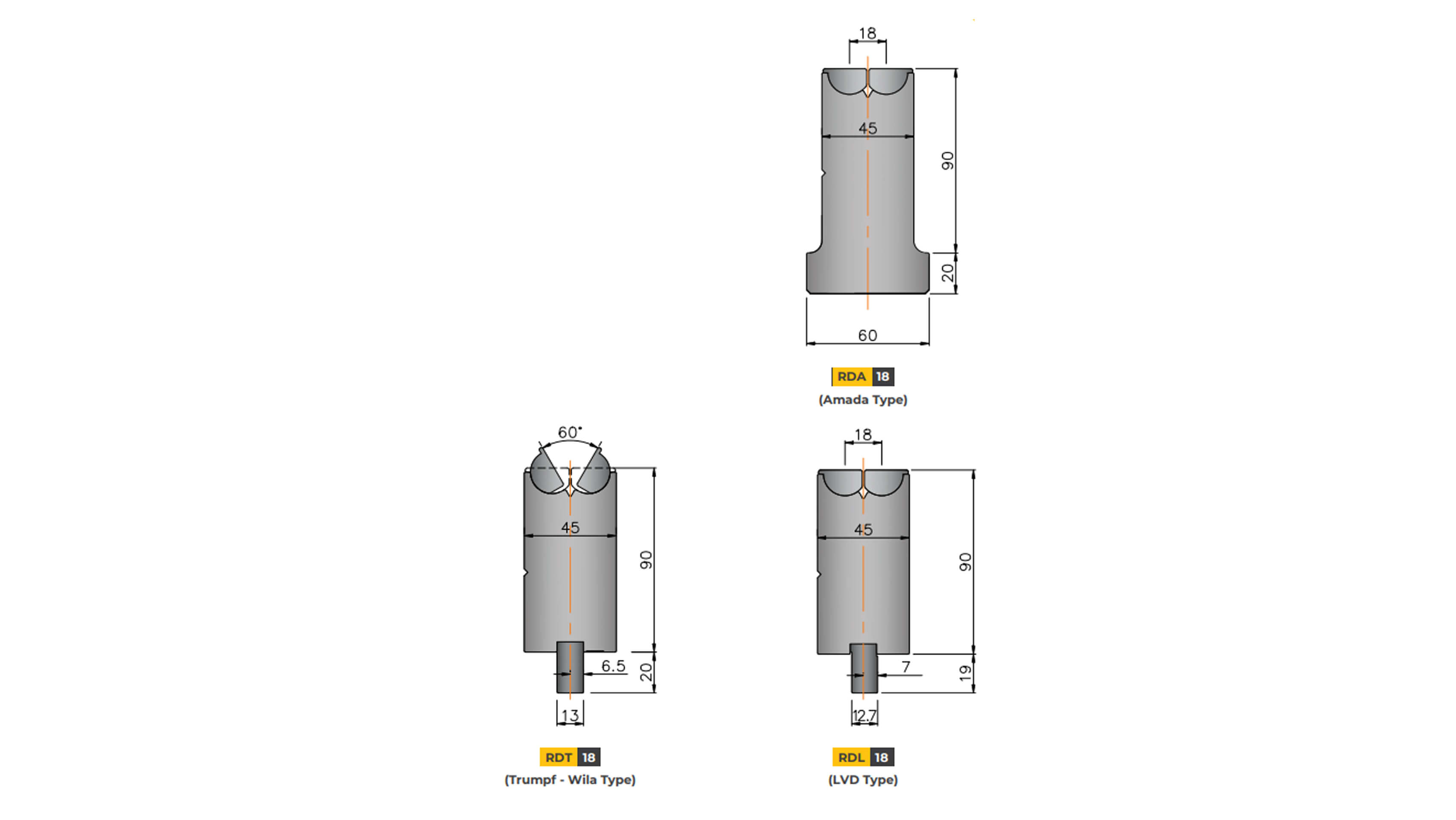

| Model No. | RD6 | RD8 | RD13 | RD18 | RD22 | ARD-1 | ARD-2 |
|---|---|---|---|---|---|---|---|
| Max. Tonnage | 30T/m | 40T/m | 80T/m | 120T/m | 150T/m | 150T/m | 200T/m |
| Equivalent VEE@90° | 5.29mm | 6.59mm | 10.88mm | 15.17mm | 19.17mm | 24-60mm | 40-120mm |
| Max. Mat. Thk.- M.S./S.S. (mm) | 1.2/1 | 1.6/1.2 | 2.5/2 | 4/3 | 5/4 | 12/10 | 16/12 |

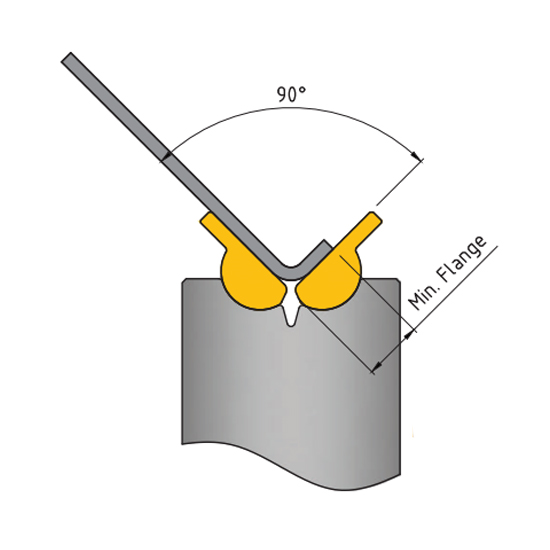

| Min. Flange for 90º | 3.7 | 4.6 | 7.7 | 11 | 14 | 15-40.4 | 20.2-76.8 |
| Min. Bend Angle | 58 | 58 | 58 | 60 | 60 | 60 | 58 |
| Max. Outside Radius | R2.1 | R3 | R6 | R8 | R10 | R12-R35 | R15-R60 |
Material Option :
Chrome Nickel Grade tool steel
Toughened 38±2HRc
and Working Area Laser
Hardened 55/56HRc.
Rocker Material :
Chrome Vanadium Steel
Vacuum Hardened 58±2HRc.
