Gusset Insert Selection

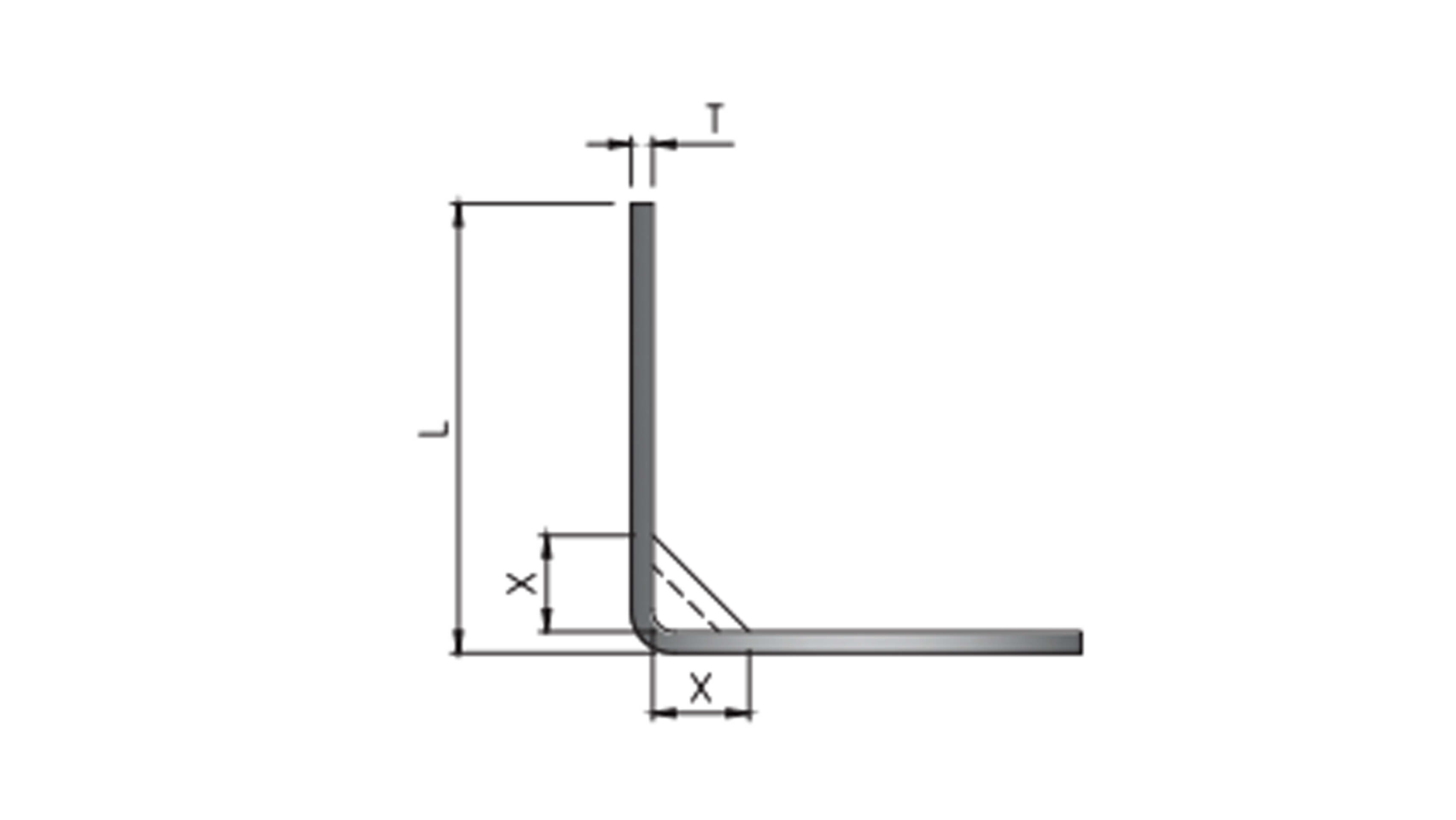

gusset-insert-selection
T=0.8 MM
Die Opening Gap in punch Gusset Forming insert model No
X
3.5 V6A86 10 H1
5 V8A86 12 H1
6 V10A86 14 H1
T=2 MM
Die Opening Gap in punch Gusset Forming insert model No
X
3 V10A86 14 H2
5 V12A86 16 H2
5.5 V16A86 14 H3
6 V10A86 16 H1
7.5 V12A86 18 H1
8 V16A86 16 H2
9 V20A86 20 H3
10 V16A86 22 H1
11 V20A86 18 H2
T=1 MM
Die Opening Gap in punch Gusset Forming insert model No
X
4 V10A86 10 H2
4.5 V8A86 12 H1
5.5 V12A86 10 H2
6 V10A86 14 H1
7.5 V12A86 16 H1
T=1.5 MM
Die Opening Gap in punch Gusset Forming insert model No
X
3.5 V10A86 12 H2
5 V12A86 12 H2
6.5 V10A86 15 H1
7.5 V12A86 17 H1
8 V16A86 12 H2
10.5 V16A86 21 H1
T=2.5 MM
Die Opening Gap in punch Gusset Forming insert model No
X
5 V16A86 18 H3
7.5 V16A86 18 H2
8.5 V20A86 20 H3
10.5 V20A86 20 H2
11.5 V24A86 20 H3
13 V24A86 18 H2
T=3 MM
Die Opening Gap in punch Gusset Forming insert model No
X
8 V20A86 20 H3
10.5 V20A86 22 H2
11 V24A86 20 H3
13 V24A86 22 H2
Material Option :

M-01 Performance grade.
Cr'Mn'Mo 900-1020 N/mm2
(Alloy steel)
Quenched and tempered 30±2 HRc.
Tip Induction Hardened 52±2HRc

Material Option :

M-02 Economy grade.
C45 : 570-680 N/mm²
(Plain Carbon Steel)
Tip Induction Hardened 52±2HRc.
