Wila Type Tooling

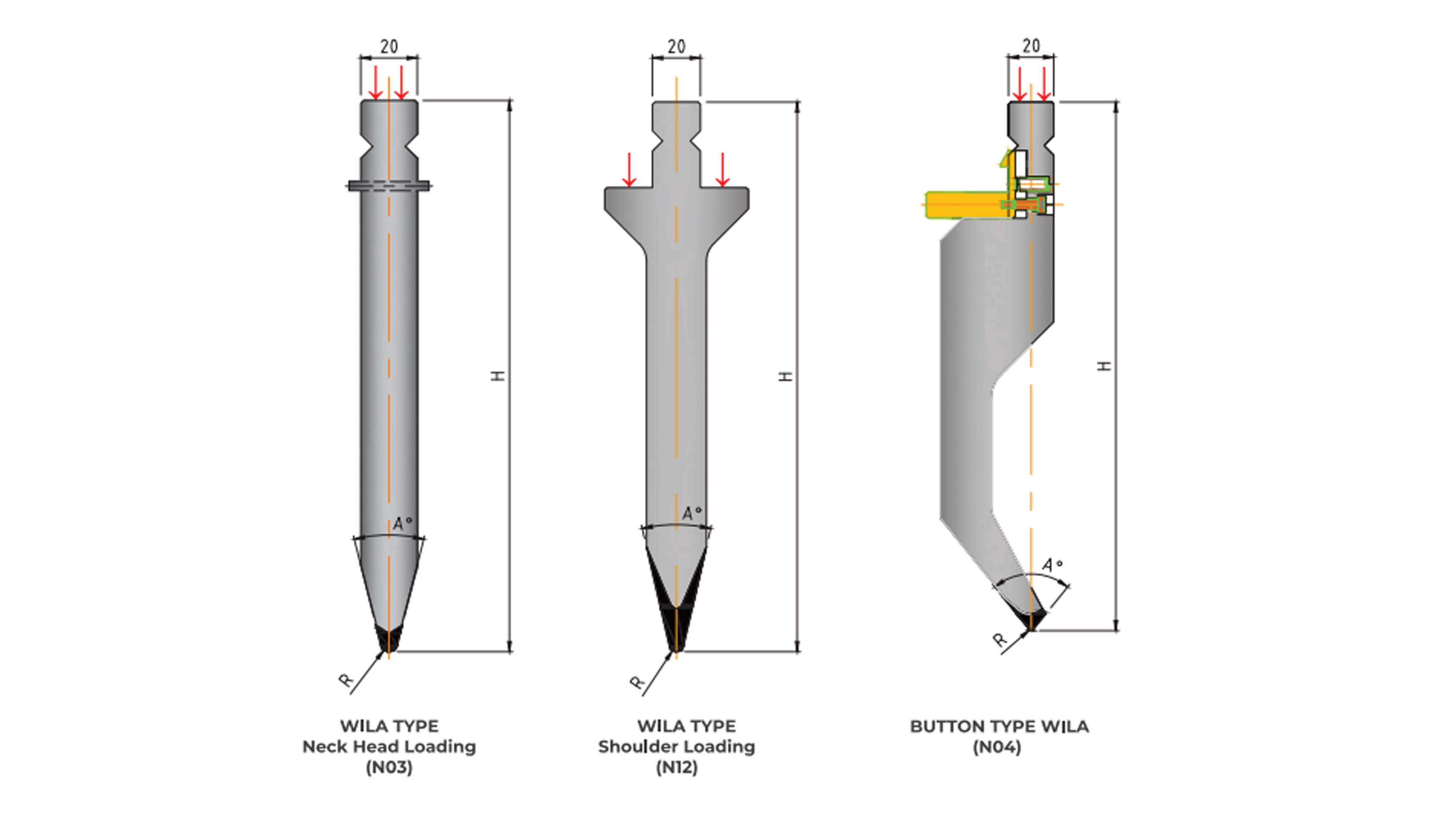

The unique feature of this tool is that it can be used from both sides.

The segmented punch can be effortlessly positioned between two punches using the button-type, without requiring the removal of all tools.

Fast tool change over

wila-type-tooling
Material Option :

M-01 Performance grade.
Cr'Mn'Mo 900-1020 N/mm2
(Alloy steel)
Quenched and tempered 30±2 HRc.
Tip Induction Hardened 52±2HRc

material-option
Material Option :

M-02 Economy grade.
C45 : 570-680 N/mm²
(Plain Carbon Steel)
Tip Induction Hardened 52±2HRc.

material-option
Material Option :

M-08 Tough Hardened and Groundened.
42Cr'Mo4
Quenched & Tempered 30±2 HRc

material-option
Related Products
wila-type-press-brake-punches-sp
Wila Type Tooling Straight Punch
wila-type-press-brake-punches-sgnp

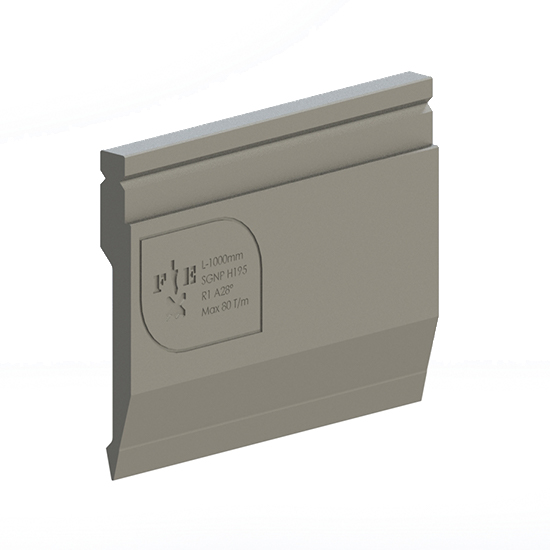

Wila Type Tooling Semi Gooseneck Punch
wila-type-press-brake-punches-gnp

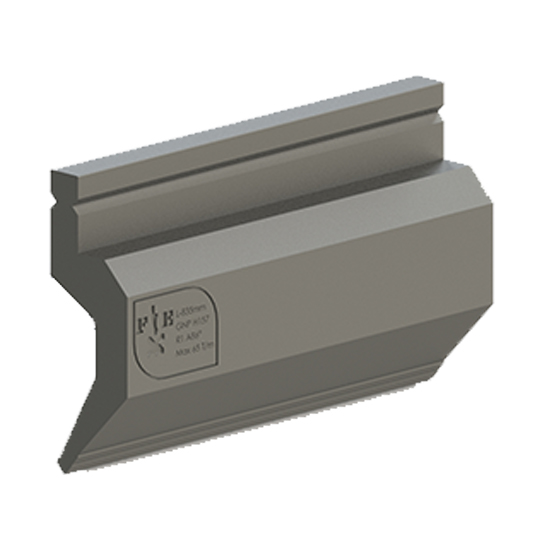

Wila Type Tooling Semi Gooseneck Punch
