Adaptive Rocker Die - 1

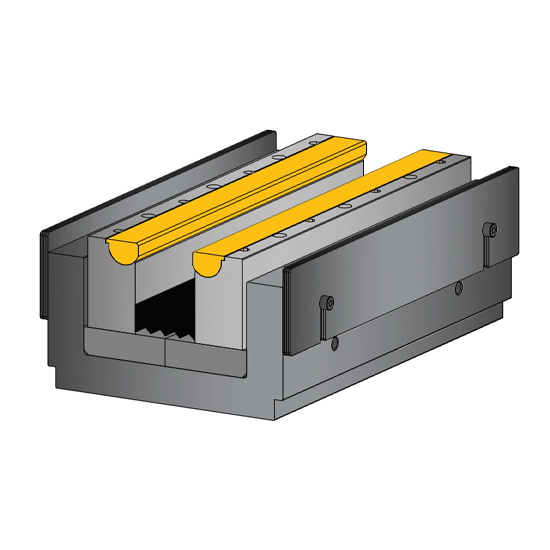

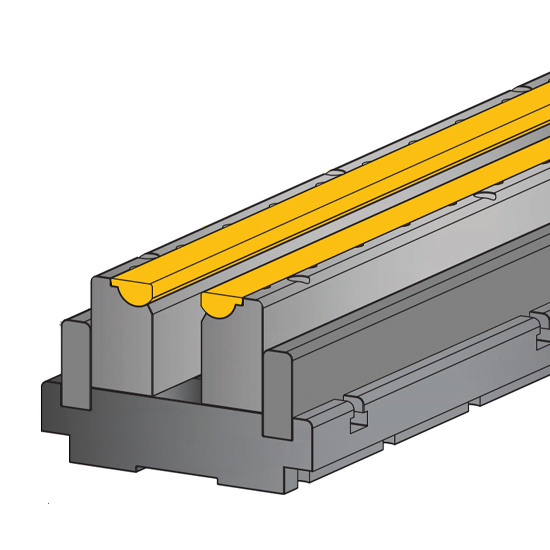

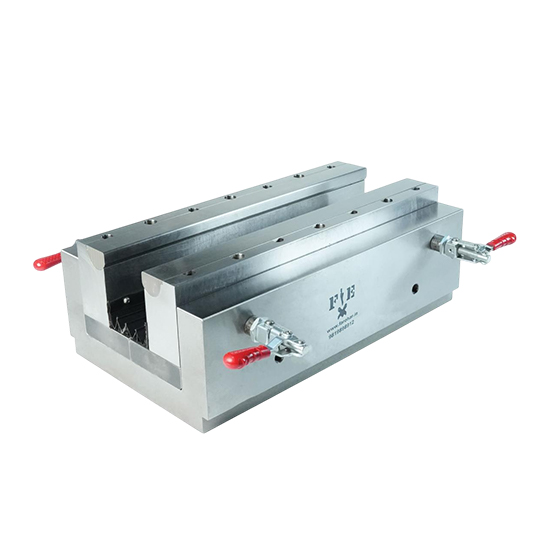

•   The Adaptive Rocker die is designed to meet diverse sheet metal needs.
•   Tool accommodates various combinations of minimum flange length and large radius in different thicknesses.
•   Freedom to increase Vee opening by 2mm by varying packing thickness.
•   In-house surface grinding up to 4500mm long, single-stroke -ensuring 20 microns accuracy through out tool.
•   CNC machined cavities for precise matching and interchangeability.

Adaptive Rocker Die - 1

Adaptive Rocker Die - 1

• Tonnage Capacity 150T/m
• Minimum bend angle 60º
• Max. Material Thk. M.S. 5mm - S.S. 4mm
• Maximum Outside Radius R10
• Minimum Possible Flange Length 13.5mm

Adaptive Rocker Die - 2

Adaptive Rocker Die - 1 (ARD - 1)

• Tonnage Capacity 200T/m

---

• Minimum bend angle 58º

---

• Max. Material Thk. M.S. 16mm - S.S. 12mm

---

• Maximum Outside Radius R15/R60

---

• Minimum Possible Flange Length 20.2/76.8

Rocker Channel Bending Insert

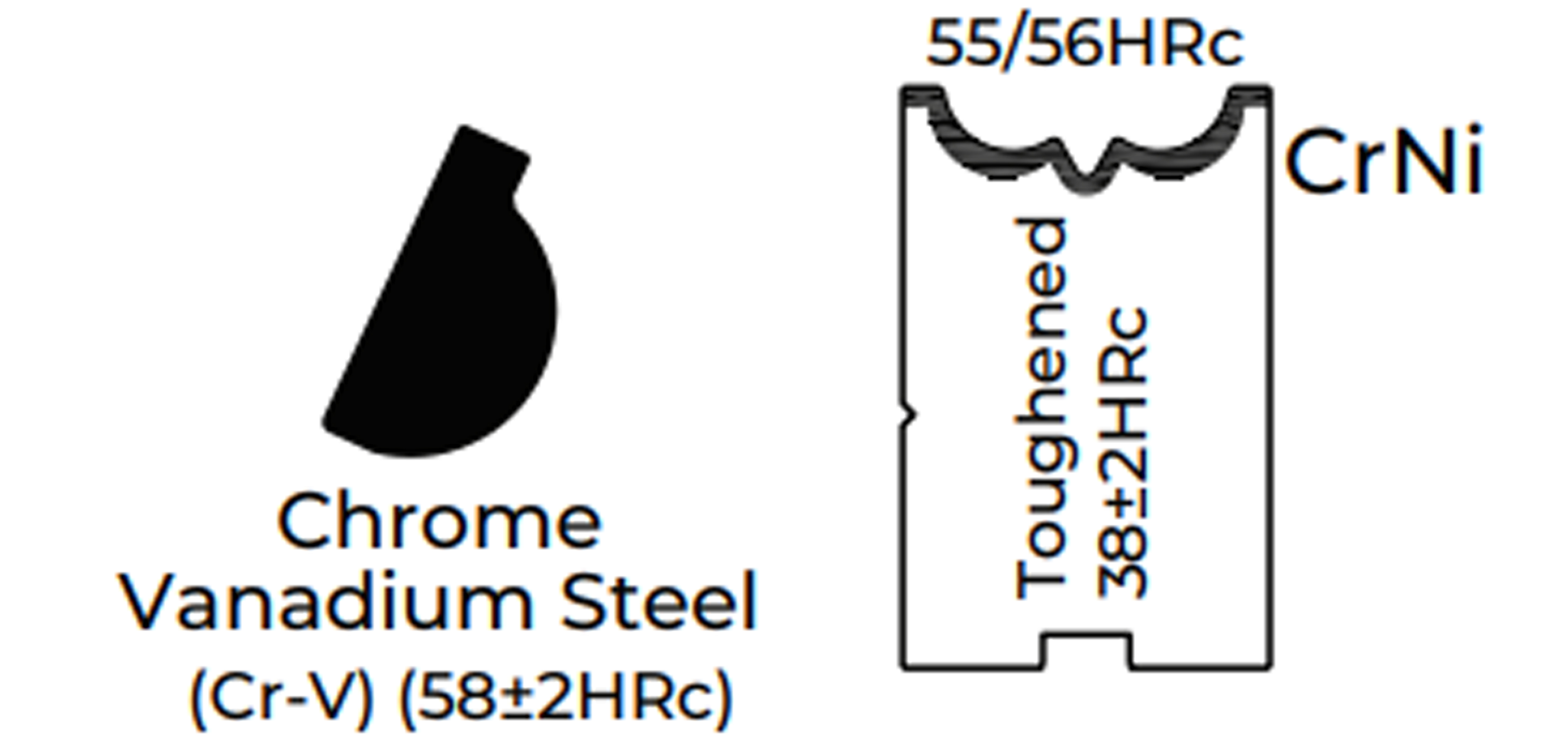

Material Option :

Chrome Nickel Grade tool steel
Toughened 38±2HRc
and Working Area Laser
Hardened 55/56HRc.
Rocker Material :
Chrome Vanadium Steel
Vacuum Hardened 58±2HRc.
