Standard Rocker Die
6CD Rocker Die
rocker-die
RDA 06
(Amada Type)
rocker-die
RDT 06
(Trumpf Type)
rocker-die
RDL 06
(LVD Type)
rocker-die
RDT 06
(Wila Type)
Tonnage Capacity 30T/m
Minimum bend angle 58º
Max. Material Thk. M.S. 2.5mm - S.S. 2mm
Maximum Outside Radius R6
Minimum Possible Flange Length. 7.7mm

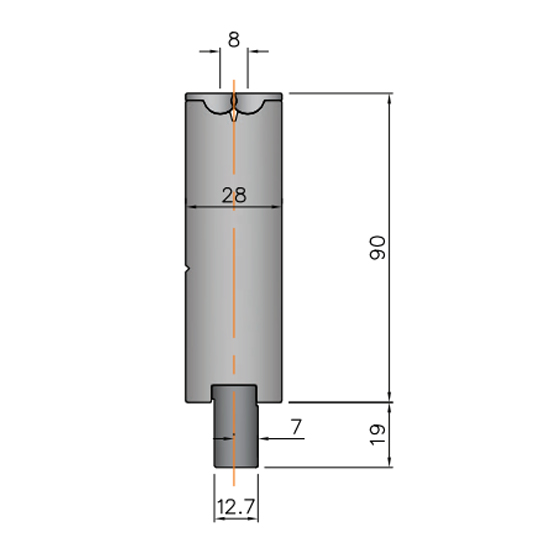

8CD Rocker Die
rocker-die
RDA 08
(Amada Type)
rocker-die
RDT 08
(Trumpf Type)
rocker-die
RDL 06
(LVD Type)
rocker-die
RDT 08
(Wila Type)
Tonnage Capacity 40T/m
Minimum bend angle 58º
Max. Material Thk. M.S. 1.6mm - S.S. 1.2mm
Maximum Outside Radius R3
Minimum Possible Flange Length. 4.6mm

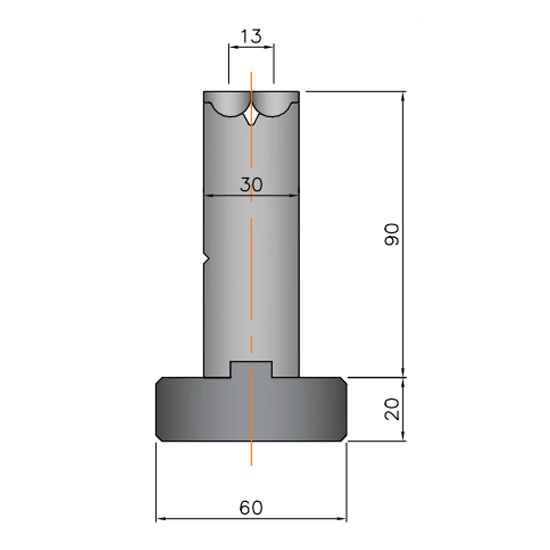

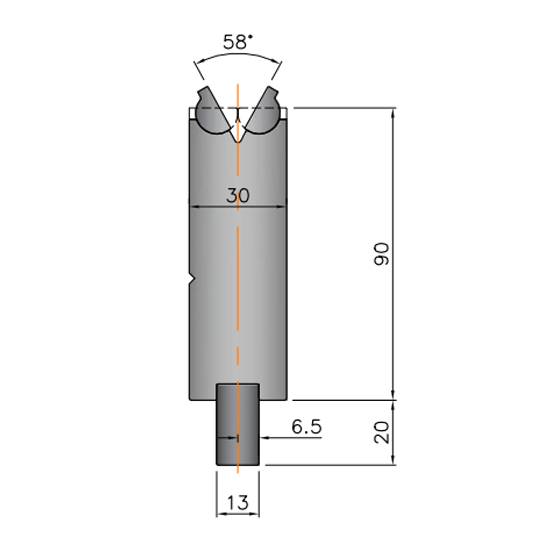

13CD Rocker Die
rocker-die
RDA 13
(Amada Type)
rocker-die
RDT 13
(Trumpf Type)
rocker-die
RDL 13
(LVD Type)
rocker-die
RDT 13
(Wila Type)
Tonnage Capacity 80T/m
Minimum bend angle 58º
Max. Material Thk. M.S. 2.5mm - S.S. 2mm
Maximum Outside Radius R6
Minimum Possible Flange Length. 7.7mm

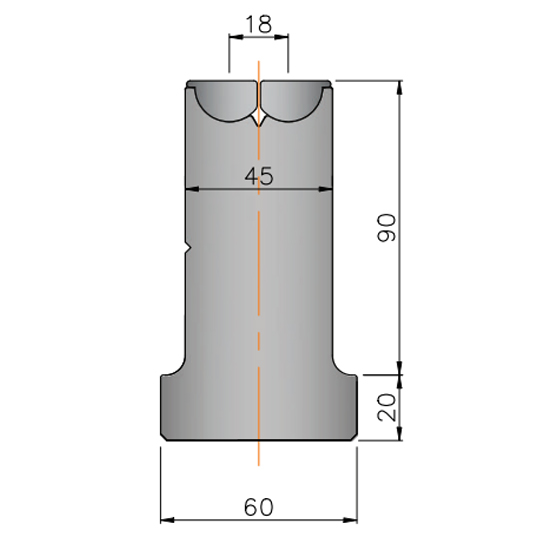

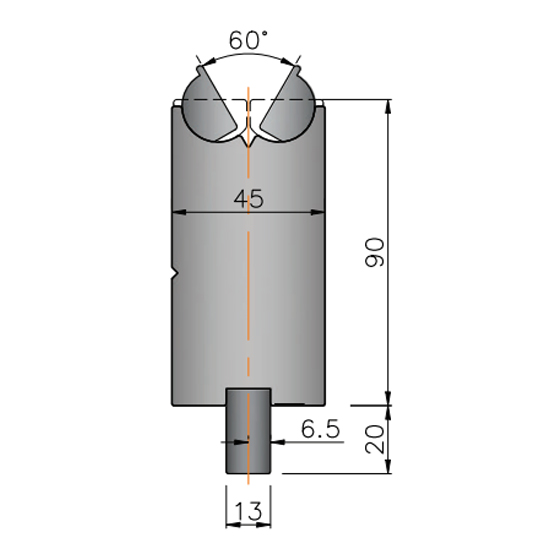

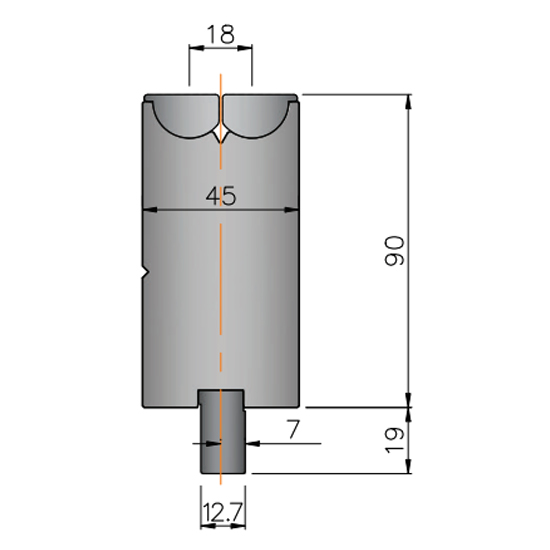

18CD Rocker Die
rocker-die
RDA 18
(Amada Type)
rocker-die
RDT 18
(Trumpf Type)
rocker-die
RDL 18
(LVD Type)
rocker-die
RDT 18
(Wila Type)
Tonnage Capacity 120T/m
Minimum bend angle 60º
Max. Material Thk. M.S. 4mm - S.S. 3mm
Maximum Outside Radius R8
Minimum Possible Flange Length. 11mm

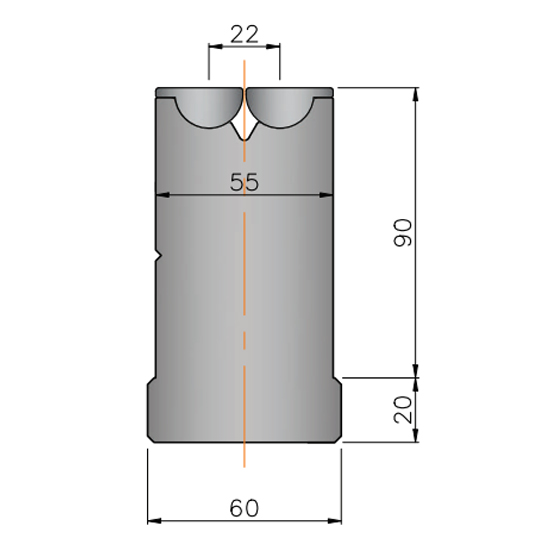

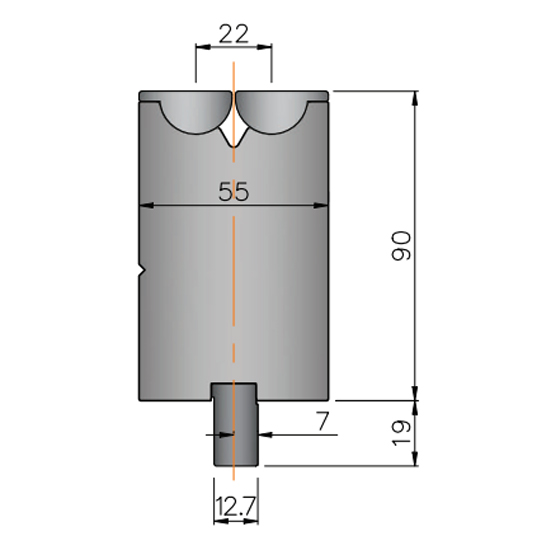

22CD Rocker Die
rocker-die
RDA 22
(Amada Type)
rocker-die
RDT 22
(Trumpf Type)
rocker-die
RDL 22
(LVD Type)
rocker-die
RDT 22
(Wila Type)
Tonnage Capacity 150T/m
Minimum bend angle 60º
Max. Material Thk. M.S. 5mm - S.S. 4mm
Maximum Outside Radius R10
Minimum Possible Flange Length. 13.5mm
Material Option :

Chrome Nickel Grade tool steel
Toughened 38±2HRc
and Working Area Laser
Hardened 55/56HRc.
Rocker Material :
Chrome Vanadium Steel
Vacuum Hardened 58±2HRc.
