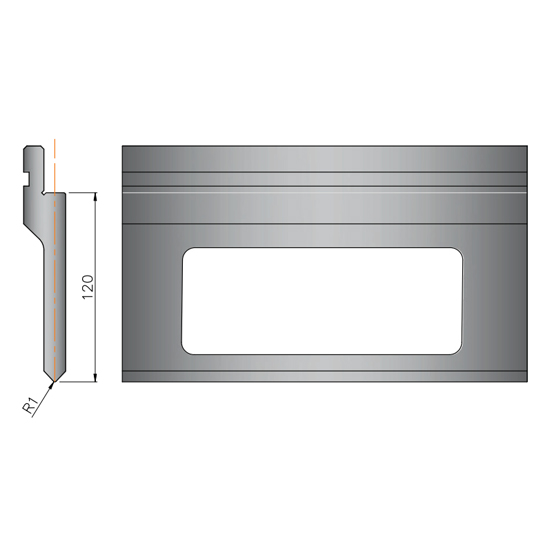

Window Punch Pocket Type
- Variable window punch for components ranging from 50 to 300 mm
- Variable radius options: R1, R1.5, R2, R3
- Decreasing the distance between two insert holders results in increased load
- Increasing the distance between two insert holders results in decreased load
Material Option :
M-01 Performance grade.
Cr'Mn'Mo 900-1020 N/mm2
(Alloy steel)
Quenched and tempered 30±2 HRc.
Tip Induction Hardened 52±2HRc
Material Option :
M-02 Economy grade.
C45 : 570-680 N/mm²
(Plain Carbon Steel)
Tip Induction Hardened 52±2HRc.
Material Option :
M-08 Tough Hardened and Groundened.
42Cr'Mo4
Quenched & Tempered 30±2 HRc
