Window Punch Insert
window-punch-insert

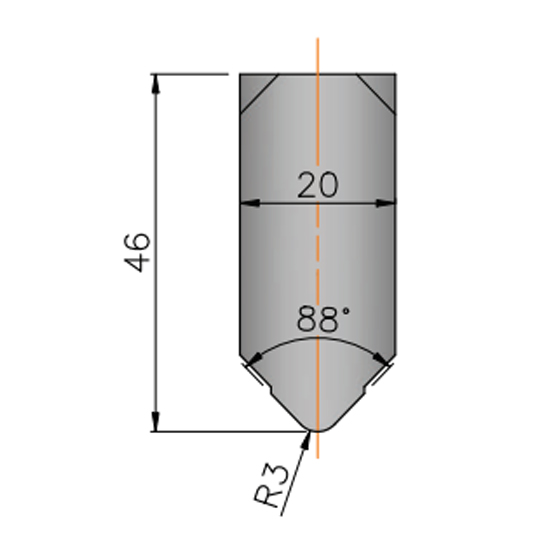

WI 01H46A88°R_
window-punch-insert

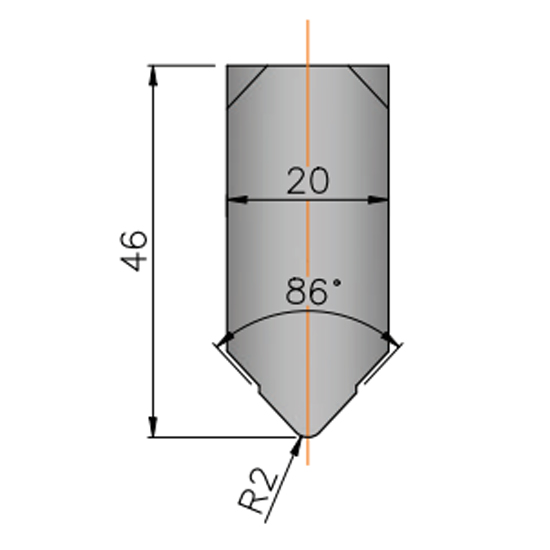

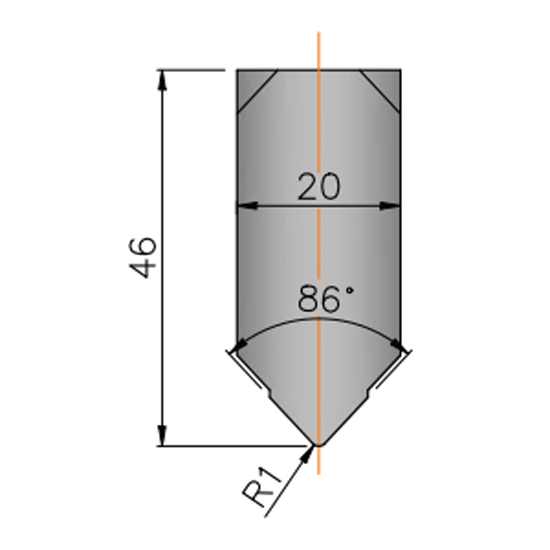

WI 02H46A86°R_
window-punch-insert

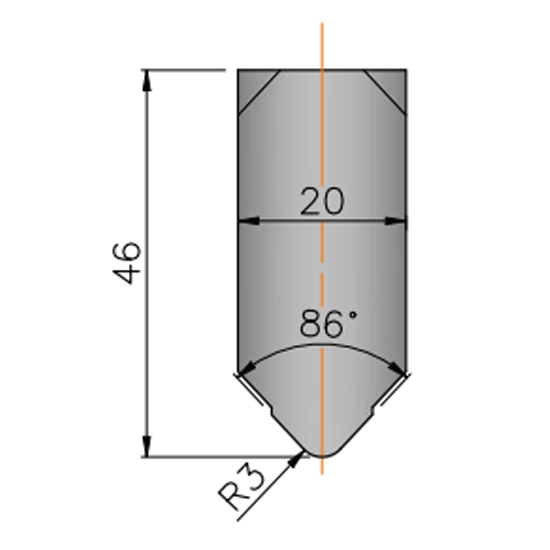

WI 03H46A86°R_
window-punch-insert
WI 04H46A86°R_
window-punch-insert

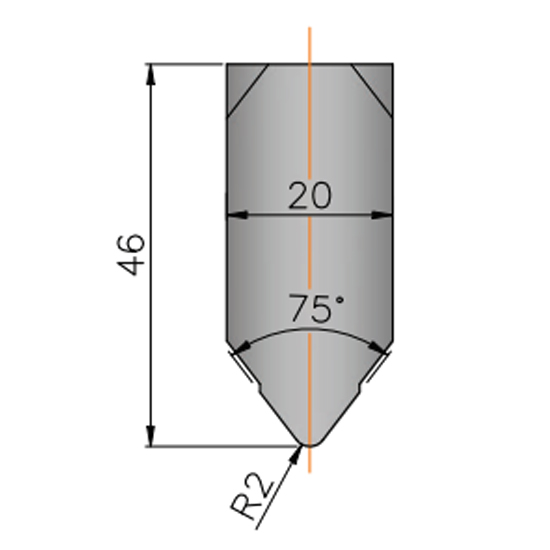

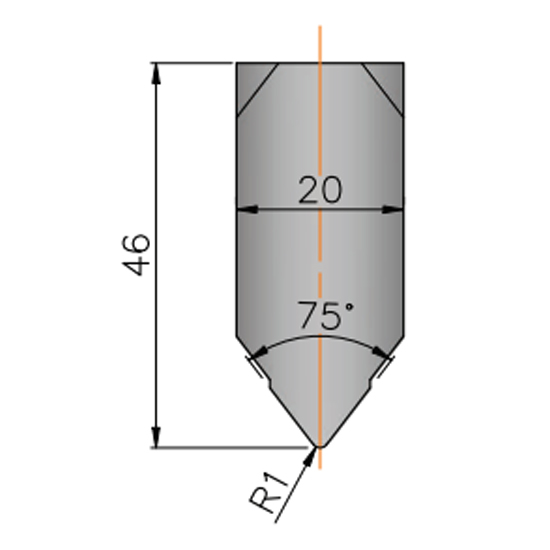

WI 05H46A75°R_
window-punch-insert

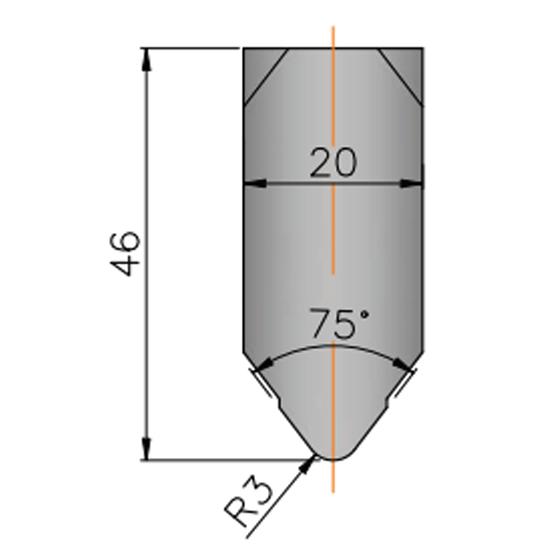

WI 06H46A75°R_
window-punch-insert
WI 07H46A75°R_
window-punch-insert

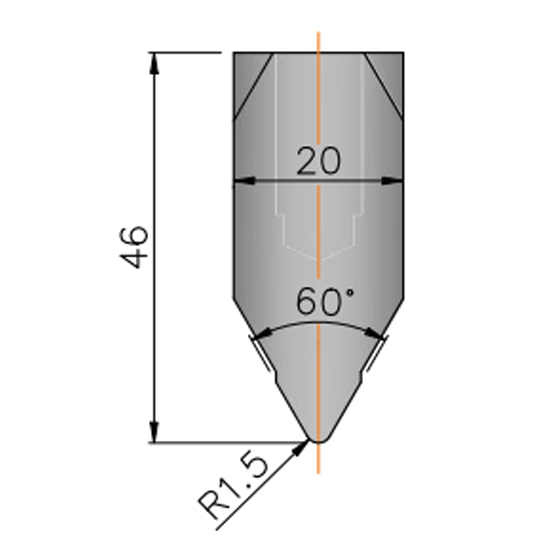

WI 08H46A60°R_
window-punch-insert

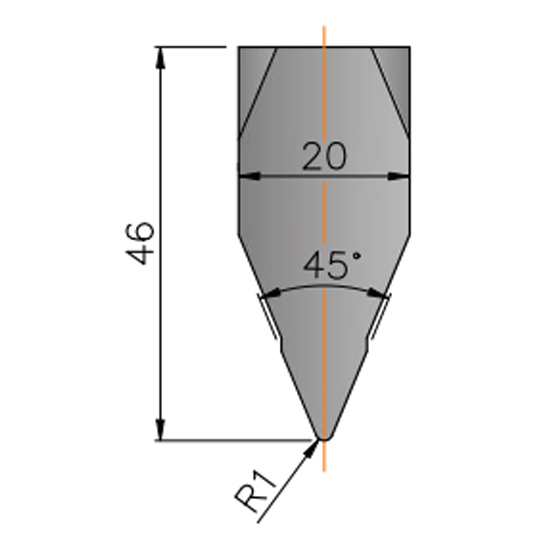

WI 09H46A45°R_

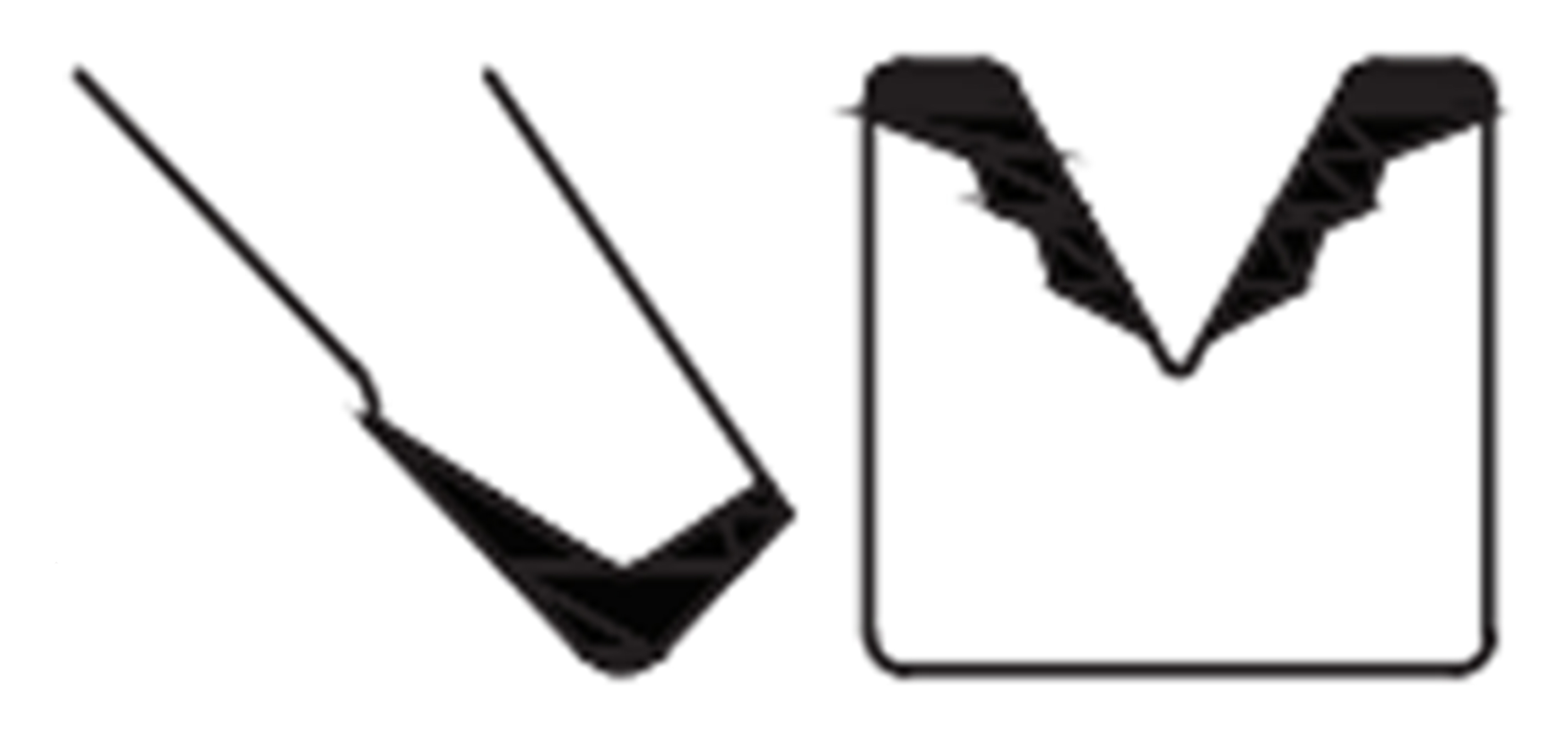

Material Option :

M-01 Performance grade.
Cr'Mn'Mo 900-1020 N/mm2
(Alloy steel)
Quenched and tempered 30±2 HRc.
Tip Induction Hardened 52±2HRc

material-option

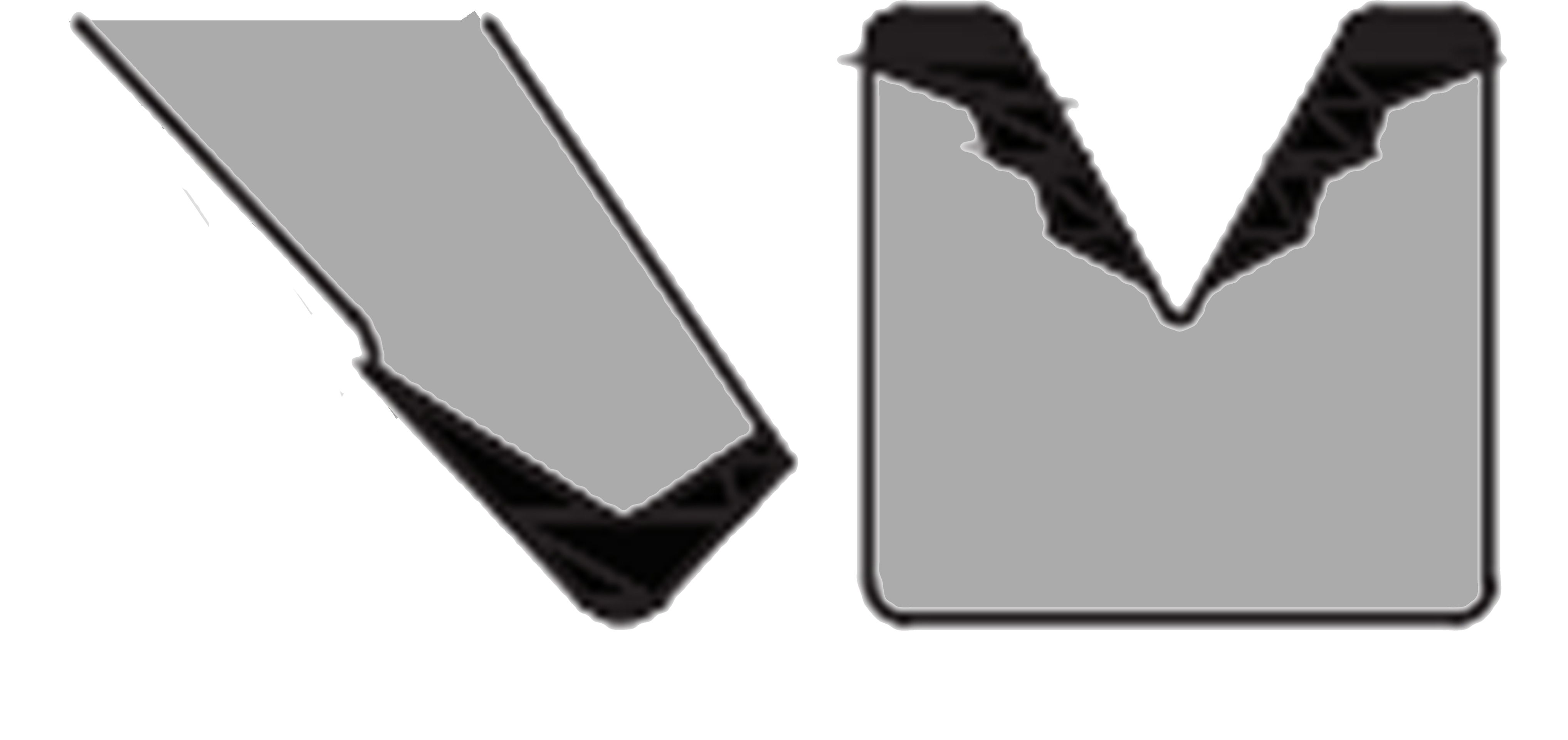

Material Option :

M-02 Economy grade.
C45 : 570-680 N/mm²
(Plain Carbon Steel)
Tip Induction Hardened 52±2HRc.

material-option
Material Option :

M-08 Tough Hardened and Groundened.
42Cr'Mo4
Quenched & Tempered 30±2 HRc

material-option
